Arduino ile birlikte kullanılabilen Isı ve nem sensörü diye geçen DHT11 ve DHT22 sensörlerini inceliyoruz.
Arduino ile hava istasyonu, kuluçka makinesi, sera iklimlendirmesi vb. projeler yapmak isterseniz bu sensörleri kullanabilirsiniz. Aynı anda hem Sıcaklığı hem de Nem’i tek bir sensör ile anlık olarak ölçebilir ve istediğiniz değerlerde arduinoya işler yaptırabilirsiniz. Kullanacağınız projenin ortamına göre dilediğiniz sensörlerden birini tercih edebilirsiniz. Şimdi sizlerle bu sensörlerin teknik yapılarına ve kullanım şekline göz atalım.

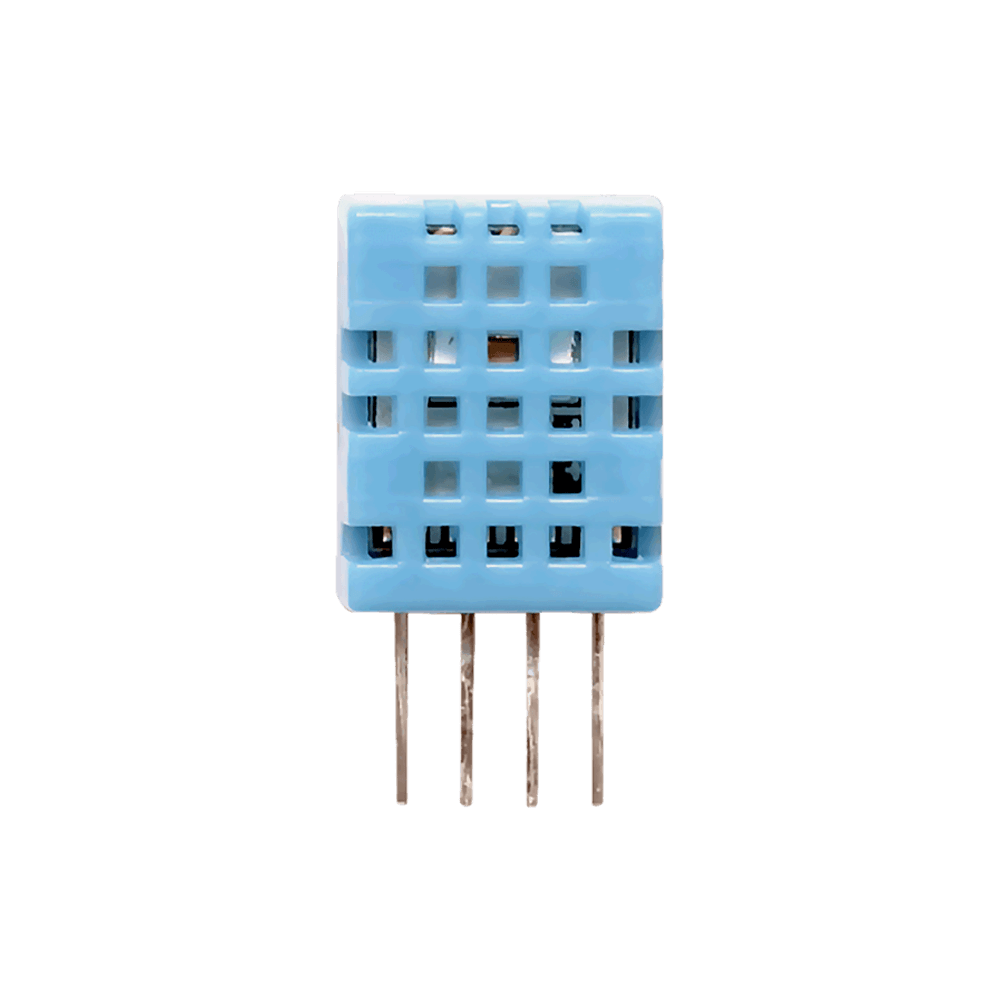

HDT11
.
Bu sensörün 4 adet bacağı bulunmaktadır. Bu bacakların biri besleme ucu, biri GND eksi ucu ve iki tanesi DATA ucudur. Arduino ile birlikte kullanırken DİJİTAL pinlere bağlanarak veri çekilebilir. Arduino ile birlikte kullanırken bacak yapısı 4 ten 3 iner. Data ucunun biriyle VCC ucu arasına 4K7 direnç kullanılır.Bu sayede arduinonun tekbir dijital pini kullanılmış olur.
Bu sensörin teknik özellikleri:
Çalışma Voltajı: 3.5V to 5.5V Çalışma Akımı: 0.3mA (measuring) 60uA (standby) Output: Serial data Ölçebileceği Sıcaklık aralığı: 0°C to 50°C Ölçebileceği Nem aralığı: 20% to 90% Resolution: Temperature and Humidity both are 16-bit Sapma Değeri: ±1°C and ±1%
Bu sensörü herhangi bir projenizde kullanmak isterseniz yukarıdaki teknik değerleri gözönünde bulundurmayı unutmayınız.
//Kerim Arı Youtube kanalı DHT11 - kullanımı örnek Kodları
4
5
6
7
#include <dht11.h>
8
9
int DhtPin = 2;
10
dht11 dht_sensor;
11
12
void setup() {
13
14
Serial.begin(9600);
15
}
16
17
void loop() {
18
19
int chk = dht_sensor.read(DhtPin);
20
21
Serial.print("NeM :");
22
Serial.print((float)dht_sensor.humidity, 2);
23
24
Serial.print(" \t");
25
26
Serial.print("ISI :");
27
Serial.print((float)dht_sensor.temperature, 2);
28
29
Serial.print(" \t");
30
31
Serial.print("Cig Olusma :");
32
Serial.println((float)dht_sensor.dewPoint(), 2);
33
34
delay(1000);
35
36
}

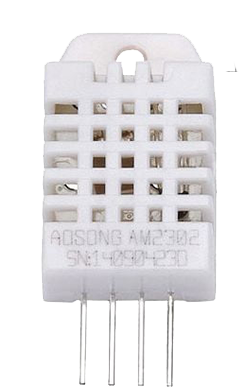

DHT22
Bu sensörün 4 adet bacağı bulunmaktadır. Bu bacakların biri besleme ucu, biri GND eksi ucu ve iki tanesi DATA ucudur. Arduino ile birlikte kullanırken DİJİTAL pinlere bağlanarak veri çekilebilir. Arduino ile birlikte kullanırken bacak yapısı 4 ten 3 iner. Data ucunun biriyle VCC ucu arasına 4K7 direnç kullanılır. Bu sayede arduinonun tekbir dijital pini kullanılmış olur.
Bu sensörin teknik özellikleri:
Çalışma Voltajı: 3.5V – 5.5V Çalışma akımı: 0,3mA (ölçüm) 60uA (bekleme) Çıktı: Seri veri Sıcaklık Aralığı: -40°C ila 80°C Nem Aralığı: %0 ila %100 Çözünürlük: Sıcaklık ve Nem her ikisi de 16 bit Doğruluk: ±0.5°C ve ±1%
Bu sensörü herhangi bir projenizde kullanmak isterseniz yukarıdaki teknik değerleri gözönünde bulundurmayı unutmayınız.
